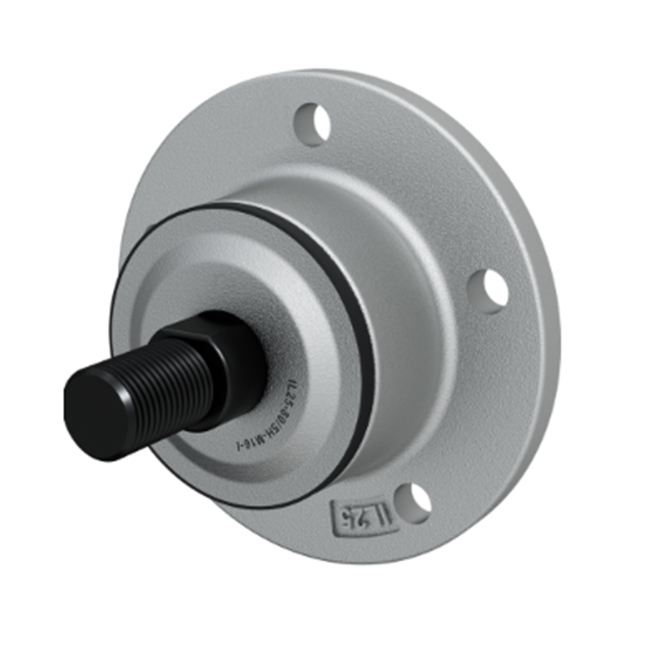

IL25-80/5H-M16-T

Availability:
Quantity:

PDF Export

IL25-80 5H-M16-T

JPitch circle diameter80mm
DOutside diameter100mm
H/THole/Thread5x8.5mm
dBore diameter20mm
CD-shape hole cut out dimension18.5mm
MOuther ThreadM16mm
LTotal length73mm
L1Total flange length38mm
ELength of D shape13.5mm
FLength of threaded part21.5mm
kgMass0.99kg
CdynDynamic load rating32kN
CoStatic load rating22kN
PuFatigue load limit0.92kN
